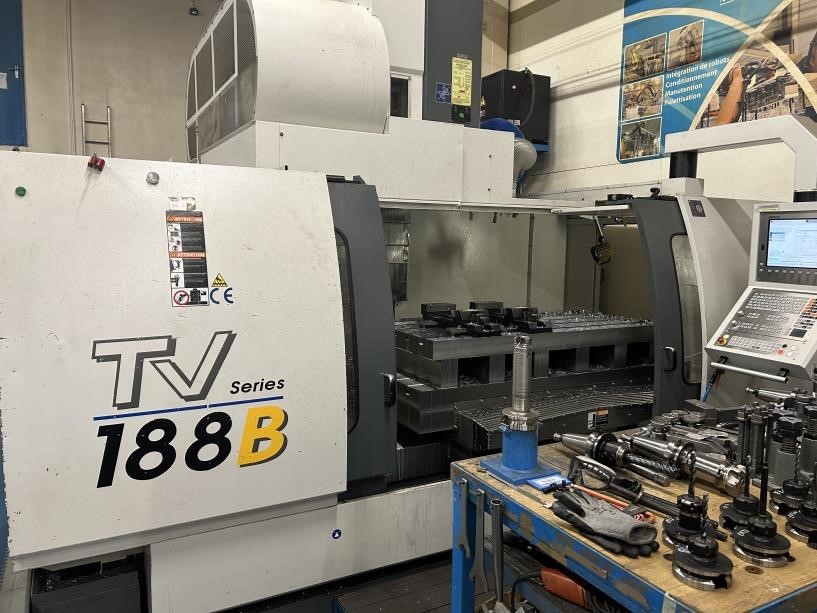

Vertical machining center YCM TV 188 B

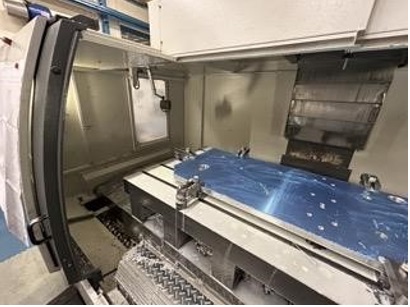

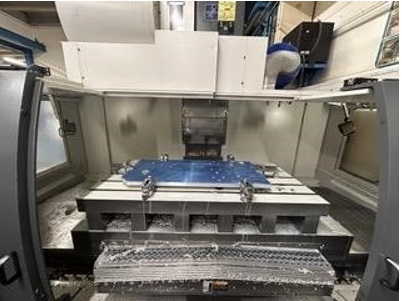

table dimensions : 2000 X 900 mm
axes : 1800 X 860 X 750mm

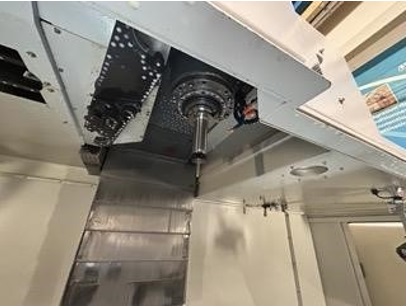

spindle speed : 8 000 tours/ min
spindle taper : BT50
spindle power : 18,5 KW
tools magazine : 40 pockets
coolant through spindle 20 bar
prismatic slide guides
weight : 21 t

BLUM receiver systems with infrared transmission
mist aspiration system

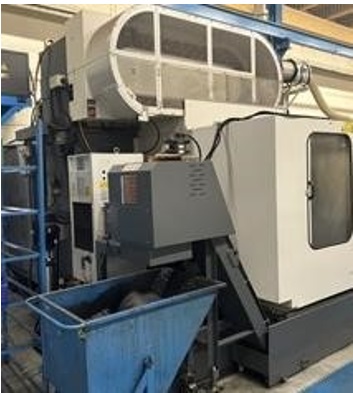

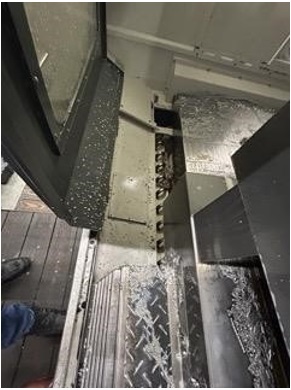

chip conveyor, double screw + elevator
isolation transformer

Table extension to reach 0 with the spindle to machine plates (removable)

Preparation for 4th axis.

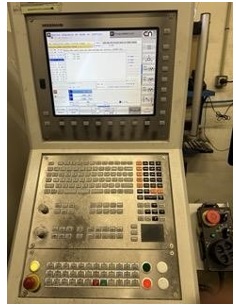

electronic handwheel
