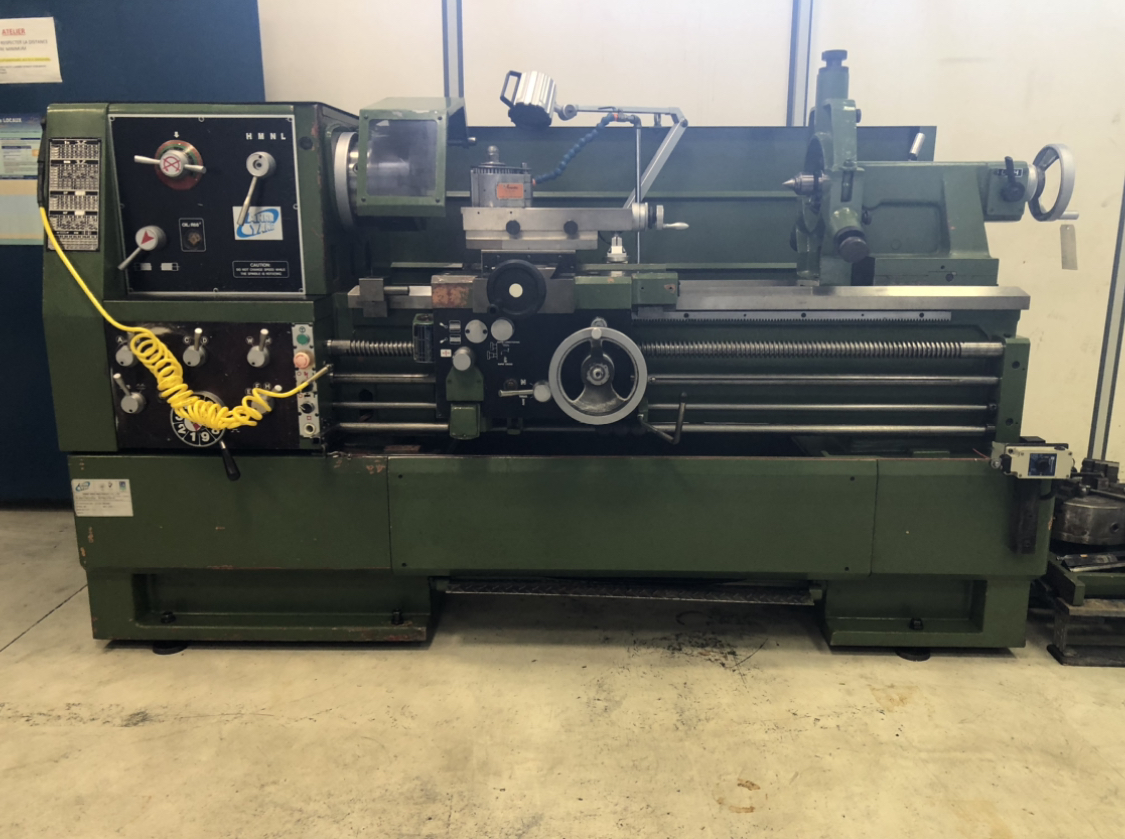

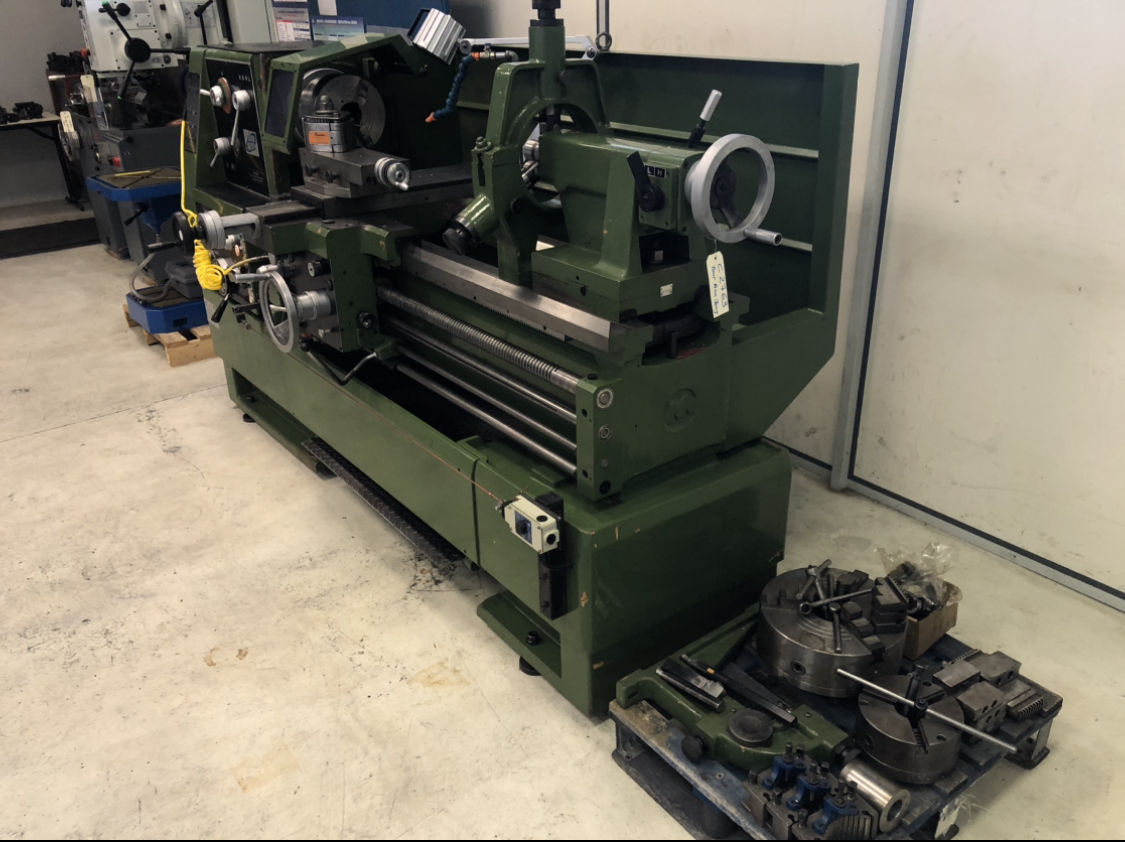

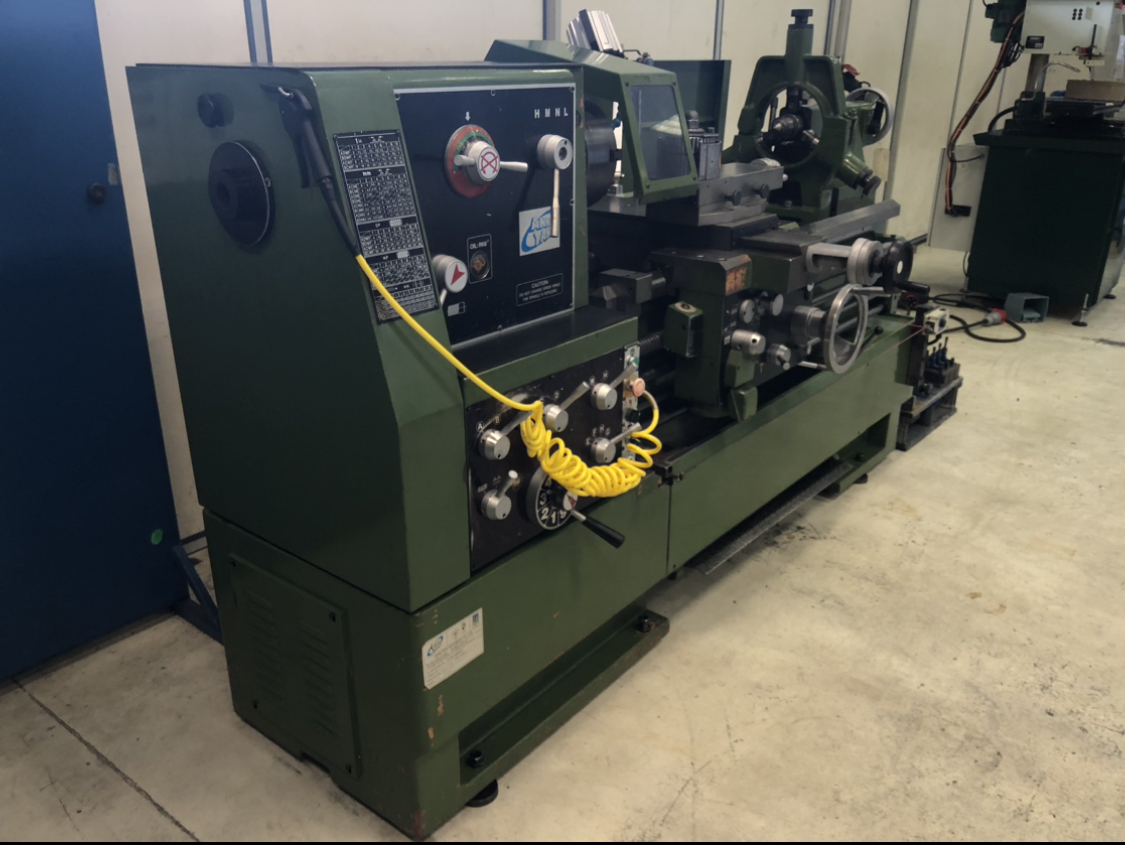

ANNN YANG DY 560-1000G

• Distance between centers: 1000 mm
• Center height (above the bed): 280 mm
• Swing over bed: 560 mm
• Swing over carriage: 310 mm
• Swing over gap: 800 mm
• Bed width: 410 mm
• Spindle taper: D1-8 / D1-11 (optional)
• Spindle bore: 104 mm / 130 mm (optional)
• Spindle speed (rpm): 25~1250 rpm
• Number of spindle speeds: 12

Feed and Threading:

• Lead screw: Ø45 mm, 2 T.P.I. or 6 pitches
• Number of feed changes: 36
• Longitudinal feed range: 0.05~0.7 mm/rev
• Cross feed range: 0.025~0.35 mm/rev
• Inch threads: 2~28 T.P.I
• Metric threads: P0.8~14 mm
• D.P. range: D.P 4~56
• Modular thread range: MOD 0.5~7

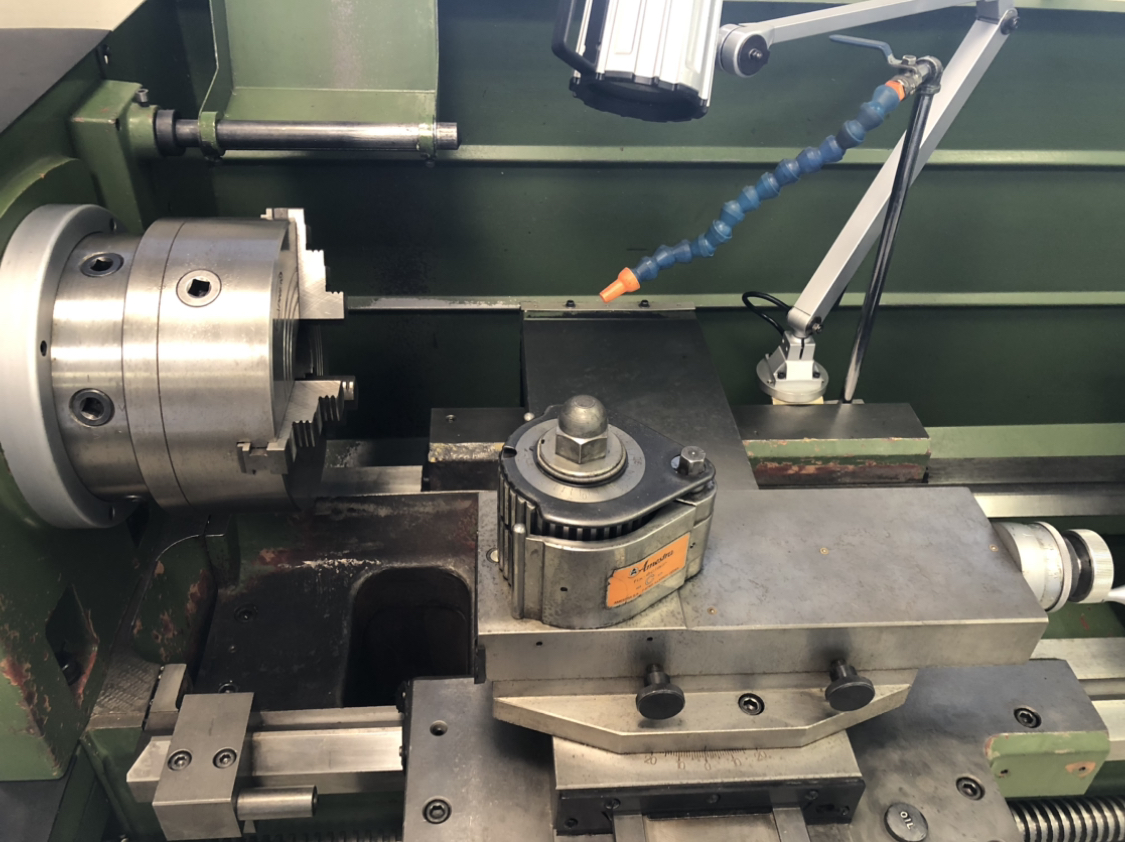

Carriage:

• Cross slide travel: 380 mm
• Top slide travel: 255 mm

Tailstock:

• Spindle travel: 180 mm
• Spindle diameter: 75 mm
• Taper: MT#5
